Main features

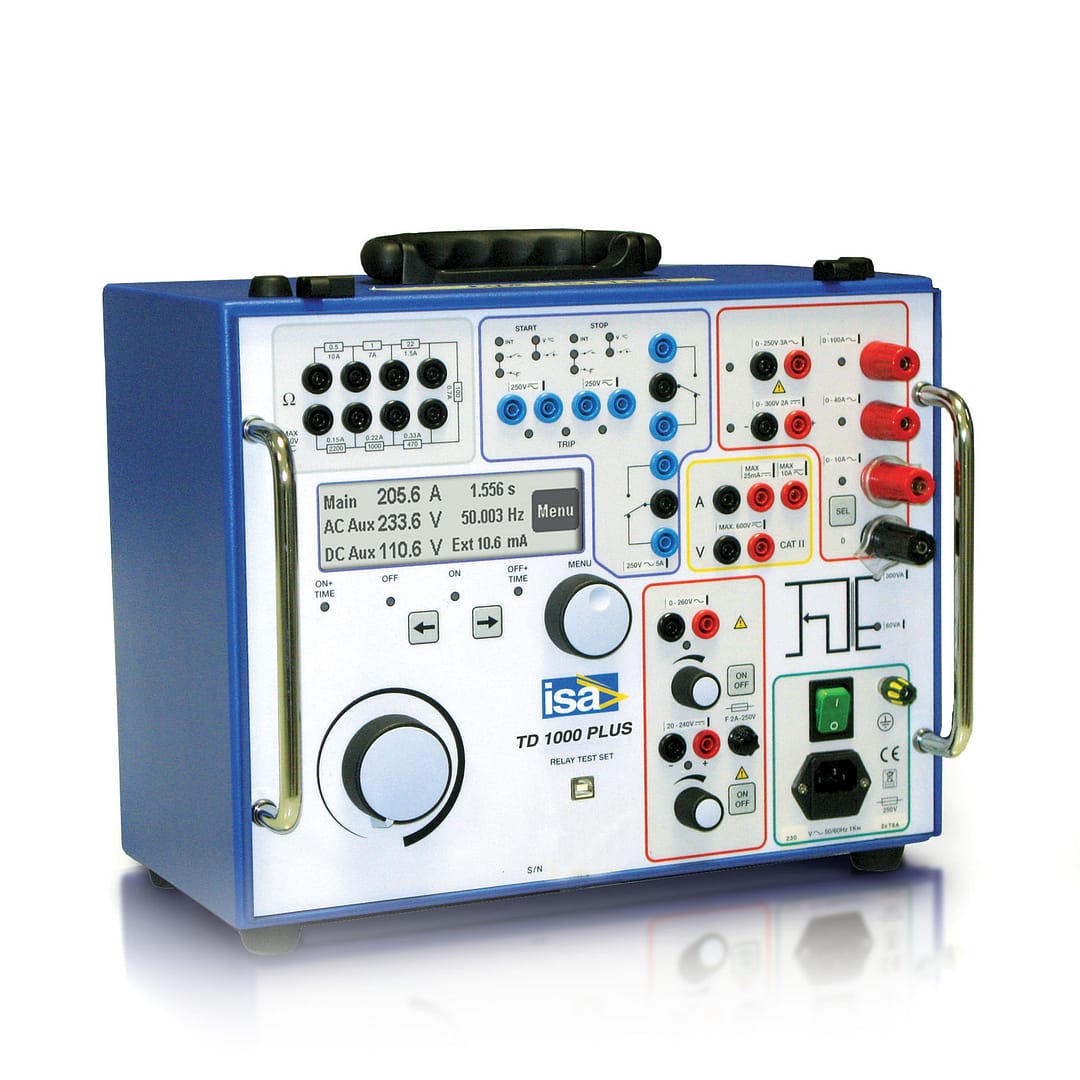

- Multi-tasking test set designed for testing relays and transducers
- Two current outputs and high power at 15 Hz
- Max current output: 250 A
- Max AC voltage output: 250 V
- Max DC voltage output: 300 V
- Frequency generator: 15 Hz ÷ 550 Hz
- Phase angle shifter
- Battery simulator 20 ÷ 260 V DC
- Oscilloscope function for current and voltage
- USB port – Microprocessor controller
- Test results and settings saved into local memory
Tests performed on:
- Distribution relays
- Smart grid relays
- Single phase relays
- High burden relays
