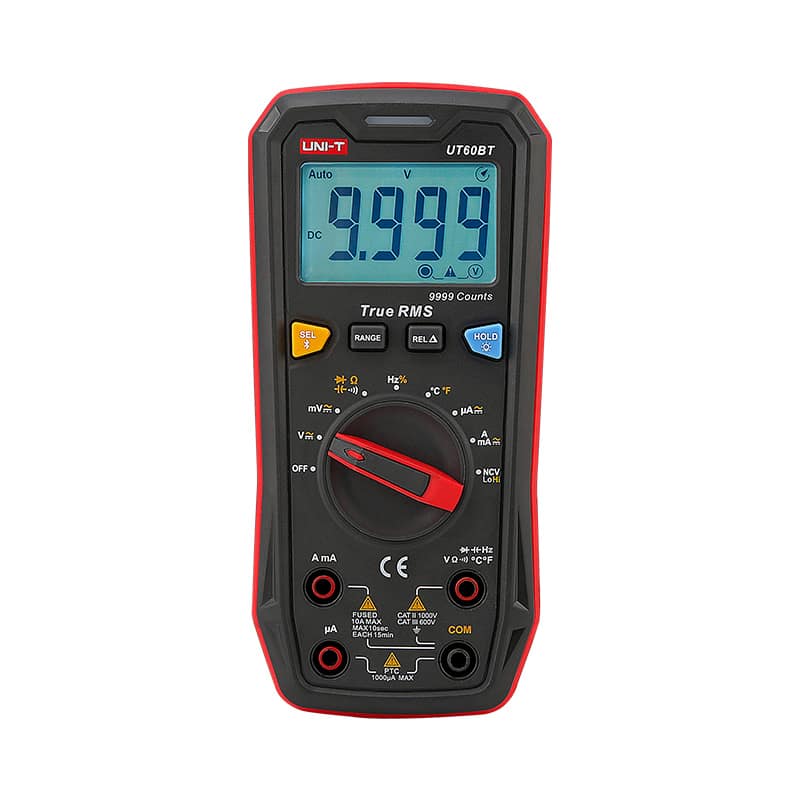

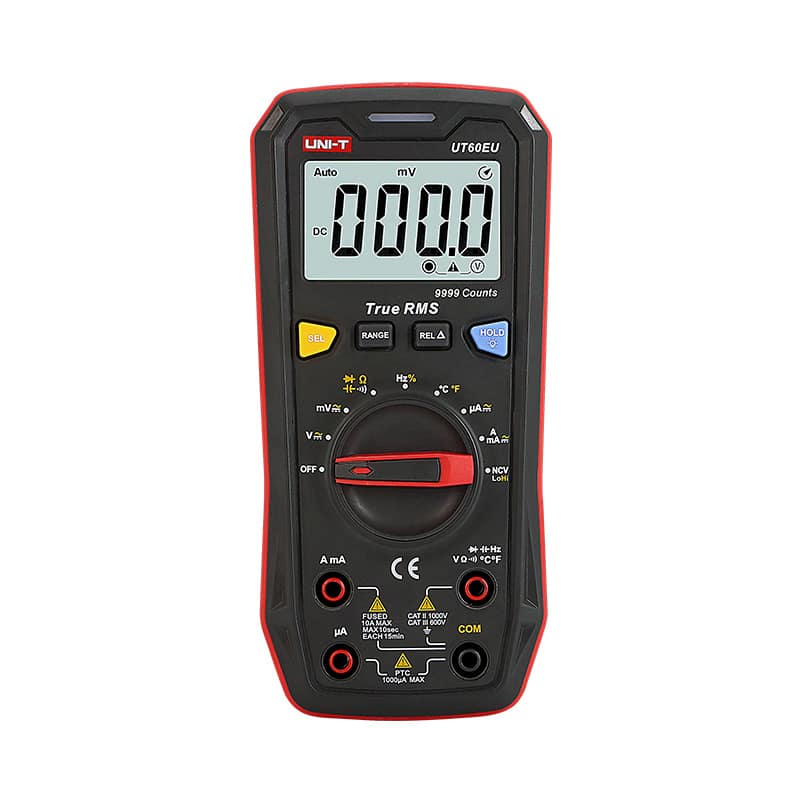

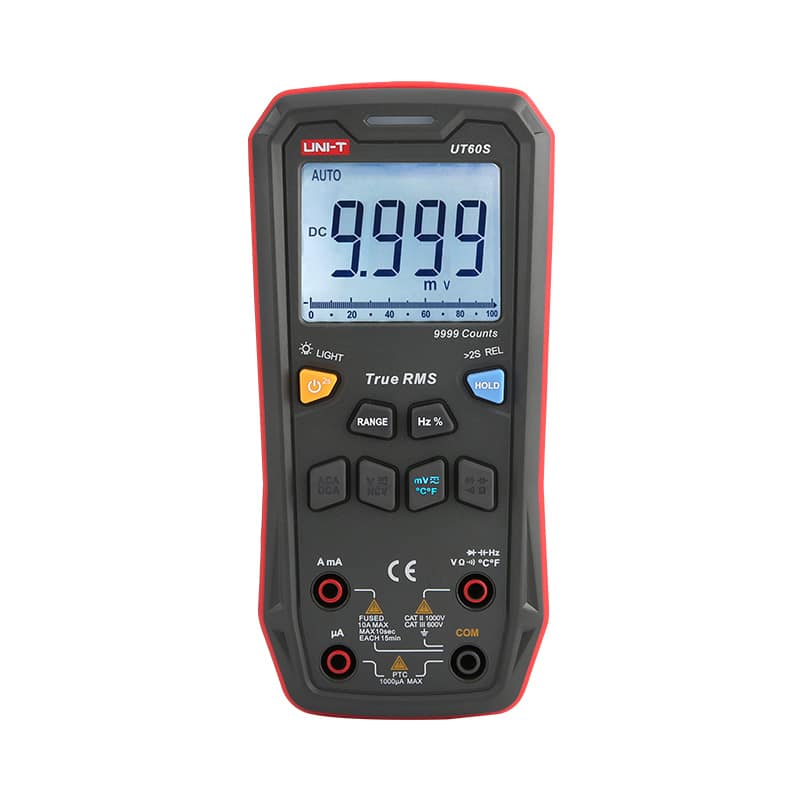

UNI-T UT60 Series Digital Multimeters

Models in the UT60 Series: UT60EU, UT60BT, UT60S

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

Category: Digital Multimeter

Description
Brand

Specifications of UT60 Series Digital Multimeters

Specification	Range	UT60EU	UT60BT	UT60S
DC Voltage	9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V	±(0.5%+3)	±(0.5%+3)	±(0.5%+3)
AC Voltage	9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
DC Current	999.9uA/999.9mA/9.999A/10A	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
AC Current	999.9uA/999.9mA/9.999A/10A	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Resistance	999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ	±(0.8%+2)	±(0.8%+2)	±(0.8%+2)
Capacitor	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF (UT60EU/UT60BT)/99.9mF(UT60S)	±(4.0%+5)	±(4.0%+5)	±(4.0%+5)
Frequency	99.99Hz～9.999MHz	±(0.1%+5)	±(0.1%+5)	±(0.1%+5)
Duty Cycle	0.1～99.9%	±(3%+5)	±(3%+5)	±(3%+5)
Temperatue	–40℃～1000℃/–40°F～1832°F	±4℃/±5℉	±4℃/±5℉	±4℃/±5℉
Features
Bluetooth			√
Display Count		9999	9999	9999
Auto Range		√	√	√
REL		√	√	√
NCV		√	√	√
Diode		√	√	√
Continuity Test		√	√	√
Acousto-optic Indication (NCV/continuity/battery power)		√	√	√
Low Battery Indication	≤3.6V	√	√	√
Data Hold		√	√	√
Auto Power Off	15Min	√	√	√
Operation Temperature	0℃～40℃
Safety	CAT II 1000V/CAT III 600V

Product Document

UT60 series Data Sheet
