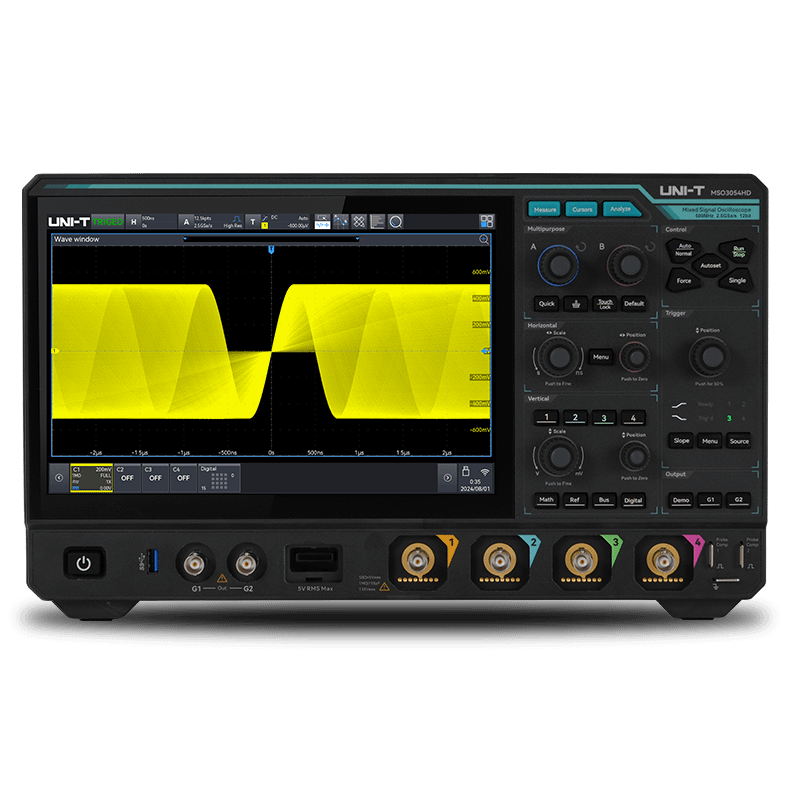

UNI-T MSO3000HD Series

The MSO3000HD is a high-resolution oscilloscope that integrates 4 signal channels, a 16-channel logic analyzer, and a 2-channel arbitrary waveform generator. Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution). It features a maximum sampling rate of 2.5 GSa/s, a memory depth of 500 Mpts, and a waveform capture rate of 1,500,000 wfms/s, ensuring high-quality waveform analysis. The MSO3000HD supports 12 types of trigger events and 12 types of protocol data, and it can be remotely controlled via a WebServer. It is suitable for various testing and analysis tasks in fields such as medical, low-power devices, integrated circuits, high-precision power supplies, electricity, and automotive electronics. The MSO3000HD is a versatile and powerful instrument.

PRODUCT DATASHEET

Category: High Resolution Oscilloscope

Description
Brand

Product overview: UNI‑T MSO3000HD oscilloscope

The UNI‑T MSO3000HD oscilloscope is a high-performance mixed-signal oscilloscope designed for advanced waveform analysis in industrial, research, and development applications. In addition, it combines multiple functions such as a digital oscilloscope, logic analyzer, and waveform generator into a single powerful device. This makes it an ideal solution for engineers and technicians working on complex electronic systems.

Moreover, the device features a high-resolution 12-bit ADC, which can be enhanced to 16-bit for improved signal clarity and reduced noise. As a result, users can capture detailed waveform data with greater accuracy. The oscilloscope offers a bandwidth range of up to 500 MHz, along with a real-time sampling rate of 2.5 GSa/s and deep memory up to 500 Mpts.

Furthermore, the UNI‑T MSO3000HD oscilloscope supports 4 analog channels and 16 digital channels, enabling simultaneous analysis of multiple signals. It also provides a high waveform capture rate of up to 1,500,000 wfms/s, allowing users to detect rare or intermittent signal anomalies efficiently.

The device includes a large 10.1-inch HD touchscreen with multi-touch support, making operation intuitive and user-friendly. In addition, it offers advanced trigger modes, protocol decoding, and multiple measurement functions for detailed signal analysis. Consequently, it improves productivity and reduces debugging time.

Moreover, this oscilloscope integrates multiple instruments such as a spectrum analyzer, power analyzer, and frequency counter, making it a versatile testing solution. At the same time, its rugged and modern design ensures reliable performance in demanding environments.

In conclusion, the UNI-T MSO3000HD oscilloscope delivers high precision, versatility, and efficiency. Therefore, it is an excellent choice for professionals working in electronics design, automotive systems, power analysis, and embedded development.

200 MHz~500 MHz BANDWIDTH	4 ANALOG CHANNELS
2.5GSa/s REAL-TIME SAMPLE RATE	500Mpts MAX. MEMORY DEPTH
1,500,000wfms/s WAVEFORM CAPTURE RATE	16 DIGITAL CHANNELS
