Main features

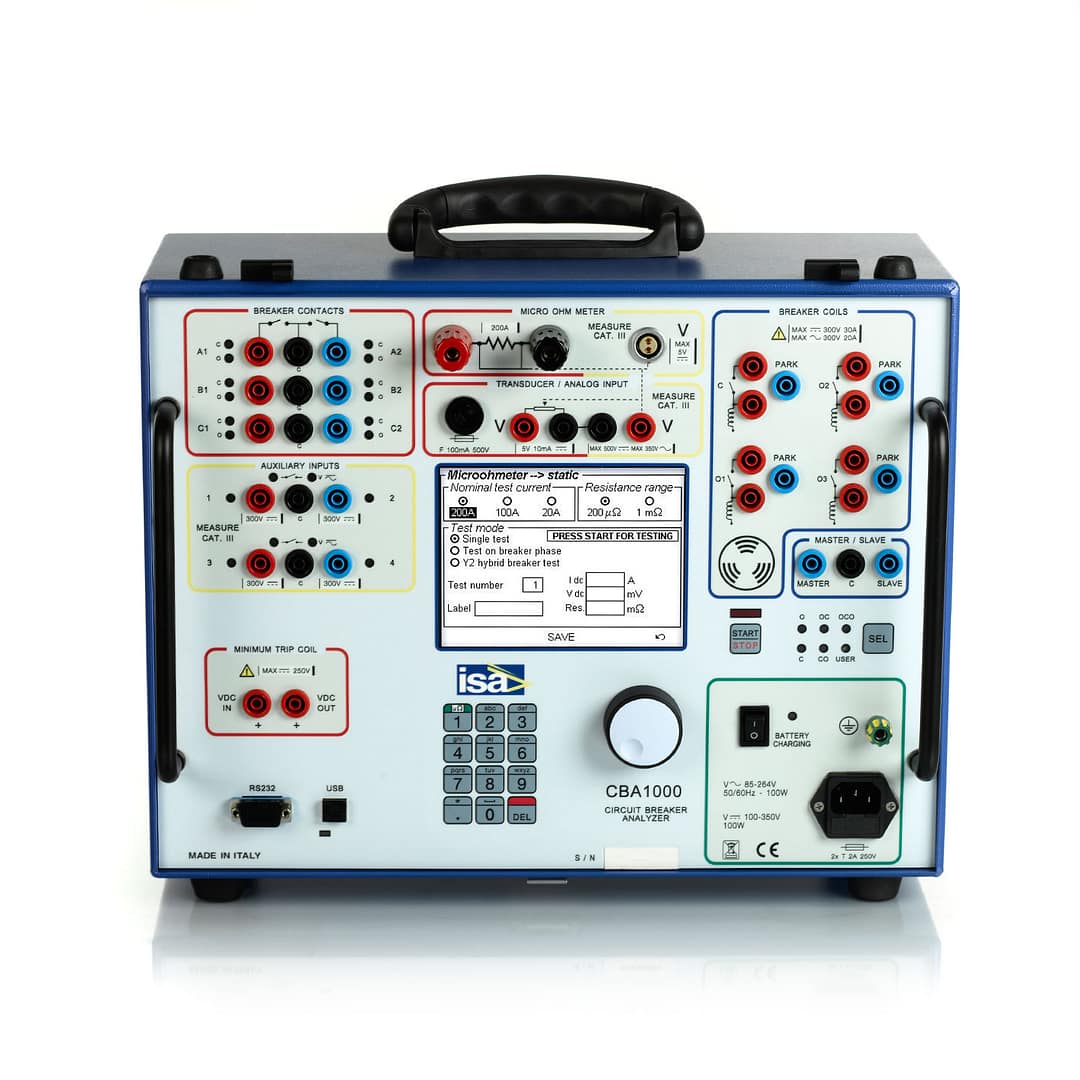

- Circuit Breaker timing test set suitable for EHV, HV and MV circuit breakers
- Built-in 200 A microhmmeter – static and dynamic contact resistance measurement
- 6 main and 6 resistive contact inputs
- Up to 4 trip/close coils control
- 7 analog inputs
- 4 auxiliary timing contact
- Cross trigger for the synchronization of up to 4 CBA 1000
- Stand alone functionality – no PC connection is required
- Analysis and result evaluation directly on the display
- Internal memory for up to 250 test results and 64 pre-defined test plans
- USB and RS232 ports
